DeltaTRAK Pulse / Temperature LoggerPT3

儀器名稱：Pulse / Temperature Logger
儀器品牌：DeltaTRAK
儀器型號：PT3
送貨時間：48小時內
標準價格：不詳
本站售價：洽詢
關鍵參數：Pulse / Temperature Logger,The DeltaTRAK PT3 is a versatile data logger designed for easy counting and recording of switch contact closures voltage pulses. It has two input channels.

性能參數介紹

軟件下載：無

資料下載：無

產品介紹

PT3

Pulse / Temperature Logger

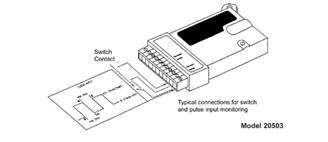

Model 20503, PT3 Pulse Temperature Logger, Electronic Multifunction Data Logger,

The DeltaTRAK PT3 is a versatile data logger designed for easy counting and recording of switch contact closures voltage pulses. It has two input channels
each with three selectable frequency ranges.

Applications: Monitoring flow conditions, energy use, wind speed, RPM, and environmental conditions.

SPECIFICATIONS:

No. of channels: Three. (One internal thermistor and two external inputs for externally generated pulse signals or dry switch contact closures)
Ranges: 32 pulses/second; 64 pulses/second; 128 pulses/second
Minimum pulse width: 4 milliseconds
Switch Contact Closure Input: Input type: Uncommitted switch or relay contacts.
Logic Inputs: Logic type: Active logic signals. Input voltage: Low= 0 to 0.5 volts (DC). High= 4.5 to 24 volts (DC).
Input Impedance: 750 K ohms.
